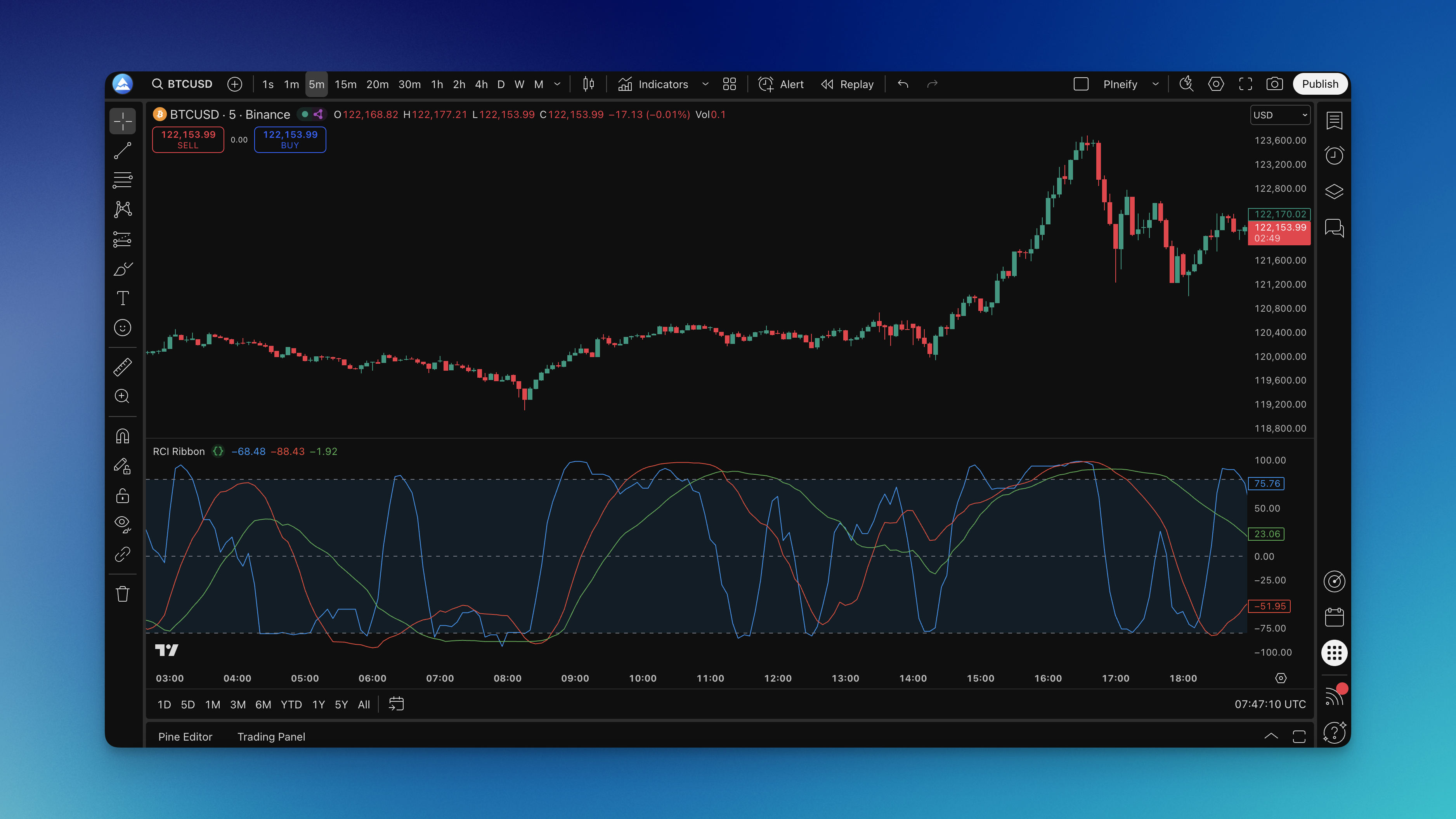

RCI Ribbon on TradingView: Three Lookback Lengths, One Chart
Pineify's RCI Ribbon calculates Rank Correlation Index values over three lookback lengths on the same source series. Its defaults are 10, 30, and 50 bars. Those are three windows on the selected chart data, not automatically three independently requested timeframes.
What RCI measures
RCI measures the association between price ranks and time ranks within a window. Values near +100 indicate strongly increasing ranked prices; values near -100 indicate strongly decreasing ranked prices. It measures ordering, not the absolute size of a price move. TradingView's RCI explanation describes the rank-correlation interpretation.
For a sample without tied ranks, a common expression is:
RCI = 100 × [1 - 6 × sum(d²) / (n × (n² - 1))]
Here, d is the difference between corresponding price and time ranks and n is the window length. The multiplier of 100 is necessary for the stated -100 to +100 scale. Tied prices require appropriate rank handling; Pineify delegates each calculation to TradingView's ta.rci rather than using the simplified expression directly.
Three lengths are not three timeframes
The implementation calls ta.rci three times with the same source and different lengths. The short, middle, and long lines therefore use overlapping observations and are not independent evidence.
| Input | Default | Meaning on an hourly chart |
|---|---|---|
| Short RCI Length | 10 | Rank calculation over 10 hourly bars |
| Middle RCI Length | 30 | Rank calculation over 30 hourly bars |
| Long RCI Length | 50 | Rank calculation over 50 hourly bars |
A separate higher-timeframe request would be needed to evaluate a daily series while viewing an hourly chart. Its confirmation timing would then require its own review.
Load the ribbon and verify its configuration
Find RCI Ribbon in Pineify's Visual Editor, select the source and lengths, and generate the script. Review it, load it in TradingView's Pine Editor, and resolve any compiler messages. Confirm the values, reference levels, and line colors on the chart rather than assuming all implementations use the same presentation.
The ribbon is configured for a separate pane. Defaults are a starting point for inspection. There is no universal mapping from a chart timeframe to a set of profitable RCI lengths.
Interpret agreement without turning it into certainty
All three lines above zero indicate positive rank relationships across the three windows. A shorter line crossing zero first can show a recent change while longer windows still reflect earlier observations. That change can reverse again.
Levels such as +80 and -80 are reference zones. A high positive reading can persist during a trend, and a low negative reading does not establish that a bottom has formed. Agreement between three lines does not guarantee continuation, and disagreement does not guarantee a reversal.
Avoid calling the indicator useless in all sideways markets or claiming that every aligned signal is real. Whether a rule helps depends on the definition of the rule, the data, the costs, and the evaluation procedure.
Design a reproducible strategy test
Replace vague conditions such as "price confirms momentum" with explicit tests. Specify which line crosses which level, whether all signs must agree, when entry occurs, and how the position exits. Record signal availability on open versus closed bars.
Use a fixed baseline, include costs, and review individual trades before comparing summary metrics. Evaluate the selected rule on a separate period and examine how results change across nearby settings. Do not repeatedly select a new best combination on the evaluation sample.
This article contains no verified TSLA lead-time result or SPY 62%/54% win-rate experiment. A ribbon screenshot cannot supply that evidence. If you publish a backtest, retain the source, settings, data window, and complete results so the claim can be checked.
Is the RCI Ribbon multi-timeframe by default?
No. Pineify's implementation uses three lengths on the same source. Different lookback lengths are not separate chart timeframes.
Does a reading above +80 mean I should sell?
No. It describes a strong rank relationship in that window. It is not a guaranteed reversal or a complete trading rule.
Are the three lines independent confirmations?
No. They use overlapping data from the same source, so their agreement should not be treated as three independent observations.
