SSL Channel Indicator: TradingView Pine Script for Trend and Buy/Sell Signals

Trying to tell when price has shifted from bearish to bullish—or the other way around—without lagging too far behind is a common challenge. I've found the SSL (SSL Channel) indicator useful for that. It draws two lines based on moving averages of the high and low; the lines swap position depending on whether price is above the high MA or below the low MA, and it marks Buy and Sell when that state flips.

The SSL Channel doesn't repaint past bars: once the horizontal level value (HLV) flips from -1 to 1, you get a Buy; when it flips from 1 to -1, you get a Sell. The channel fill and colors make the current bias obvious at a glance. After testing it on several timeframes, I use it mainly as a trend filter and for clear reversal signals when price crosses the MAs. In this guide you'll see how the SSL Channel is built, how to add and tune it in TradingView (including via Pineify), and how to use it in real strategies with clear entry, stop-loss, and take-profit rules.

What is SSL Channel?

SSL Channel is an overlay indicator that uses two moving averages—one from the high and one from the low—to form a channel. The upper and lower lines of the channel swap based on whether price is above the high MA or below the low MA. When price is above the high MA, the "SSL Up" line sits on top (green bias); when price is below the low MA, the "SSL Down" line sits on top (red bias). That flip gives you an immediate visual of trend and generates Buy/Sell signals when the state changes.

The logic is:

• MA High = moving average of the high (default: 200-period SMA).
• MA Low = moving average of the low (default: 200-period SMA).
• HLV (Horizontal Level Value):
  • +1 when price (close or, if "wicks" is on, high) is above MA High.
  • -1 when price (close or, if "wicks" is on, low) is below MA Low.
  • Otherwise HLV keeps its previous value.
• SSL Up = when HLV < 0, use MA Low; when HLV ≥ 0, use MA High.
• SSL Down = when HLV < 0, use MA High; when HLV ≥ 0, use MA Low.

So the two lines are always the same two MAs; only which one is "up" and which is "down" changes when HLV flips. That’s what makes the channel appear to swap. Buy signal occurs when HLV goes from -1 to 1; Sell signal when HLV goes from 1 to -1. Unlike a simple MA crossover, the SSL Channel gives you a band (the fill between the two lines) and explicit Buy/Sell labels. It fits well with other trend tools such as moving average envelopes or trend-following indicators for confirmation.

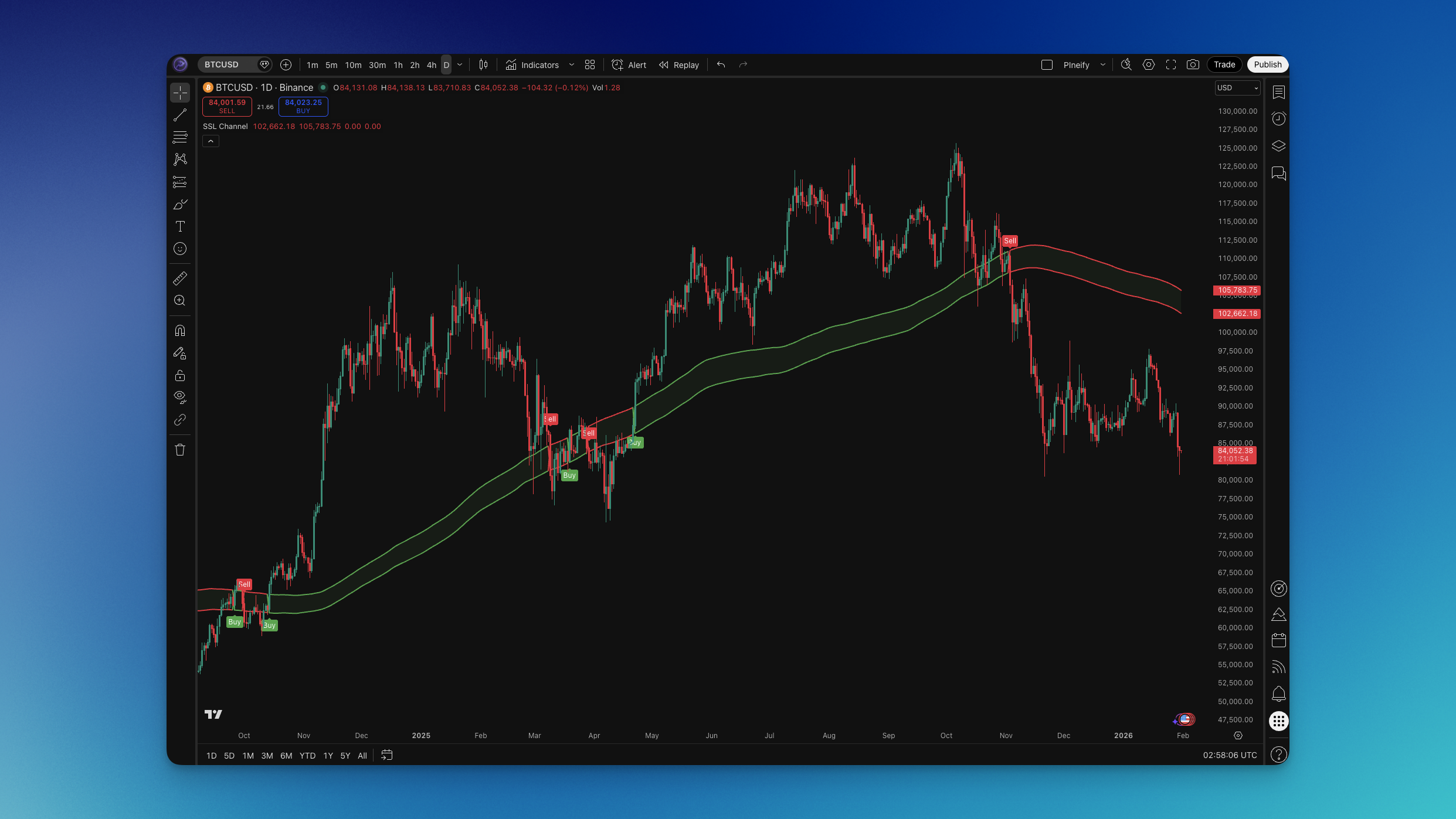

How to Add SSL Channel to TradingView

TradingView doesn’t include a built-in "SSL Channel" by name. You can add it in two ways:

Option 1 – Pineify (recommended)

1. Open Pineify and open the Pine Script editor.
2. Search for "SSL Channel" or "SSL" in the indicator library.
3. Add the indicator to your layout and adjust inputs (MA length, MA type, sources, wicks, highlight state, colors, labels).
4. Copy the generated Pine Script into TradingView’s Pine Editor and add it to your chart.

Option 2 – TradingView Pine Editor

1. In TradingView, open the Pine Editor and paste an SSL Channel script (e.g. from the community or the one in this article).
2. Click "Add to chart." The indicator will overlay on the price chart.
3. Open the indicator settings (gear icon) to change MA length, MA type, sources, and whether to use wicks or highlight state.

Typical inputs are: MA High/Low length (e.g. 200), MA type (SMA is default; EMA, etc. are optional), High/Low as sources, and "Take Wicks into Account" (false = use close only for HLV). The whole process with Pineify usually takes about five minutes including customization.

How to Use SSL Channel (Practical Trading Strategies)

SSL Channel is best used as a trend filter and for reversal-style entries when HLV flips. Below are concrete ways to use it.

Strategy #1: HLV flip (Buy/Sell on state change)

• Setup: SSL Channel is on the chart; default 200-period MAs or your chosen length.
• Entry: Long on Buy signal (HLV flips -1 → 1); short on Sell signal (HLV flips 1 → -1). Optionally require a close beyond the relevant MA to avoid noise.
• Stop-loss: Below the recent swing low (longs) or above the recent swing high (shorts), or just beyond the opposite SSL line.
• Take-profit: Next opposite signal, or a fixed risk multiple (e.g. 1.5–2R).

Strategy #2: Trend filter for other entries

• Setup: Use SSL Channel to define bias: green fill = only look for longs; red fill = only look for shorts.
• Entry: Use your usual entry (e.g. pullback to a moving average, breakout, or another indicator) but only when SSL bias agrees.
• Stop-loss: Based on your entry method (e.g. below pullback low for longs).
• Take-profit: Your normal target or trailing stop.

Strategy #3: Multi-timeframe SSL

• Setup: Check SSL on a higher timeframe (e.g. daily) for trend; use a lower timeframe (e.g. 4H or 1H) for timing.
• Entry: When higher-timeframe SSL is green, take only Buy signals (or pullback longs) on the lower timeframe; when red, take only Sell signals (or pullback shorts).
• Stop-loss: On the timeframe you enter (e.g. below/above the signal bar or recent swing).
• Take-profit: Logical level or trailing stop.

I've found the SSL Channel particularly useful on higher timeframes (4H, daily) to avoid whipsaws; on lower timeframes I use a shorter MA length or combine it with volume or RSI for confirmation.

Best SSL Channel Settings

Settings should match your timeframe and style. Below are practical starting points.

Scalping (1–5 minute charts)

• MA length: 10–30 (faster flips).
• MA type: SMA or EMA.
• Shorter lengths react quickly but can whipsaw in choppy markets.

Day trading (15–60 minute charts)

• MA length: 50–100.
• MA type: SMA (default) or EMA.
• Balances responsiveness and noise.

Swing trading (4H–daily charts)

• MA length: 100–200 (default 200 is common).
• MA type: SMA.
• Longer lengths smooth out noise and align with swing trend.

Position trading (daily/weekly)

• MA length: 200 or more.
• MA type: SMA.
• Focus on major trend; fewer signals, higher commitment.

In general: shorter length = more signals and more noise; longer length = fewer signals and smoother trend. "Take Wicks into Account" (high/low for HLV) can trigger earlier but may increase false flips in ranging markets.

Advanced SSL Channel Techniques

Multi-timeframe analysis
Use SSL on a higher timeframe for trend direction, then use the same or a shorter SSL on a lower timeframe for exact entry on the next Buy/Sell flip or pullback in the direction of the higher-timeframe SSL.

Combining with other indicators

• RSI: Use RSI overbought/oversold at SSL flips to filter or confirm (e.g. only take Buy when RSI was oversold).
• Volume: Require above-average volume on the flip bar for conviction.
• MACD or trend indicators: Use SSL for bias and MACD/trend for timing (e.g. MACD cross in the direction of SSL).

Risk and pitfalls

• SSL can whipsaw in tight ranges; consider longer lengths or a filter (e.g. only trade when price is not stuck between the two MAs for many bars).
• No indicator works 100% of the time; always use stop-loss and position sizing.
• On very short timeframes, disable or reduce Buy/Sell labels if the chart gets cluttered.

How to Backtest SSL Channel

Backtesting helps you see if your SSL-based rules add value before risking capital. In the Pineify Editor you can build a strategy that uses SSL Channel in the conditions and then backtest it.

Typical strategy elements:

• Entry/exit conditions: e.g. Buy signal = long, Sell signal = short; or use SSL bias (green/red) plus your own entry rule.
• Market orders: long/short when conditions are met.
• Take profit: fixed target, opposite signal, or level-based.
• Stop loss: below/above recent swing or the opposite SSL line.
• Trailing stop (optional): to lock in profits when trend extends.

Risk management:

• Risk 1–2% of capital per trade (position size so that stop distance equals 1–2% of account).
• Limit how many concurrent positions you have.
• Test on multiple symbols and timeframes to see where the edge holds.

No indicator works every time; backtesting shows whether your SSL setup has a positive expectancy and in which markets/timeframes it works best.

FAQs

What is the best length for SSL Channel?
200 is the most common default and works well for swing and position trading. Use 50–100 for day trading and 10–30 for scalping. Longer length = smoother trend and fewer signals; shorter = more reactive and noisier.

What is HLV in SSL Channel?
HLV (Horizontal Level Value) is the internal state: +1 when price is above the high MA, -1 when price is below the low MA, otherwise unchanged. The Buy signal is when HLV goes from -1 to 1; the Sell signal is when it goes from 1 to -1.

Can I use SSL Channel for crypto?
Yes. Crypto can be volatile, so SSL may flip more often on short lengths. Use longer lengths (e.g. 100–200) on higher timeframes to avoid noise, and always use stops and size appropriately.

Should I use "Take Wicks into Account"?
If enabled, HLV uses high/low instead of close for the comparison. That can give earlier signals but also more false flips when wicks spike. For cleaner signals, many traders leave it off (close only).

How do I avoid whipsaws with SSL Channel?
Use a longer MA length, trade only in the direction of a higher-timeframe trend, or require a second confirmation (e.g. close beyond the MA, or RSI/volume). Avoiding short lengths in choppy markets also helps.

Can I combine SSL Channel with RSI or MACD?
Yes. Use SSL for trend bias and Buy/Sell flips; use RSI or MACD for overbought/oversold or momentum confirmation. For example: only take SSL Buy when RSI is not overbought, or only take SSL Sell when MACD is bearish. Keep the rule set simple so backtests stay interpretable.

SSL Channel works best when you use it as a trend filter and combine it with clear risk rules. Key takeaways:

• SSL Channel uses two MAs (high and low) that swap roles based on price vs MA; Buy when HLV flips -1 → 1, Sell when 1 → -1.
• Add it via Pineify or TradingView Pine Editor and tune length and MA type for your timeframe.
• Use practical strategies: HLV flip only, trend filter for other entries, or multi-timeframe SSL.
• Match length to style (shorter for scalping/day, 200 for swing/position).
• Backtest with clear entry, stop-loss, and take-profit rules and 1–2% risk per trade.
• Test on a demo or small size before going live.
